Datalogic Powerscan PD9500 2D DPM Industrial Corded Handheld Barcode Scanner

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

DATALOGIC POWERSCAN PD9500 2D DPM BARCODE SCANNER DATASHEET

DATALOGIC POWERSCAN PD9500 2D DPM BARCODE SCANNER REFERENCE MANUAL

Description

FEATURED

Snappy omnidirectional reading from contact to over 1.0 m / 3.3 ft
Highly visible Datalogic’s new instinctive ‘frame’ 4-dot
aimer with cross target scanning
New ‘soft white light’ illumination
Datalogic’s Motionix™ motion-sensing technology
Ergonomic shape provides hours of tireless data collection for the user
Supports 1D, stacked and 2D codes, postal codes and image capture
Supports any kind of DPM
Datalogic’s 3GL™ (3 Green Lights) technology and loud
beeper for good read feedback
Datalogic Aladdin configuration program available for download no charge
JavaPOS Utilities are available for download no charge
OPOS Utilities are available for download at no charge
Water and Particulate Sealing Rating: IP65

Summary

EXCELLENT READING CAPABILITIES

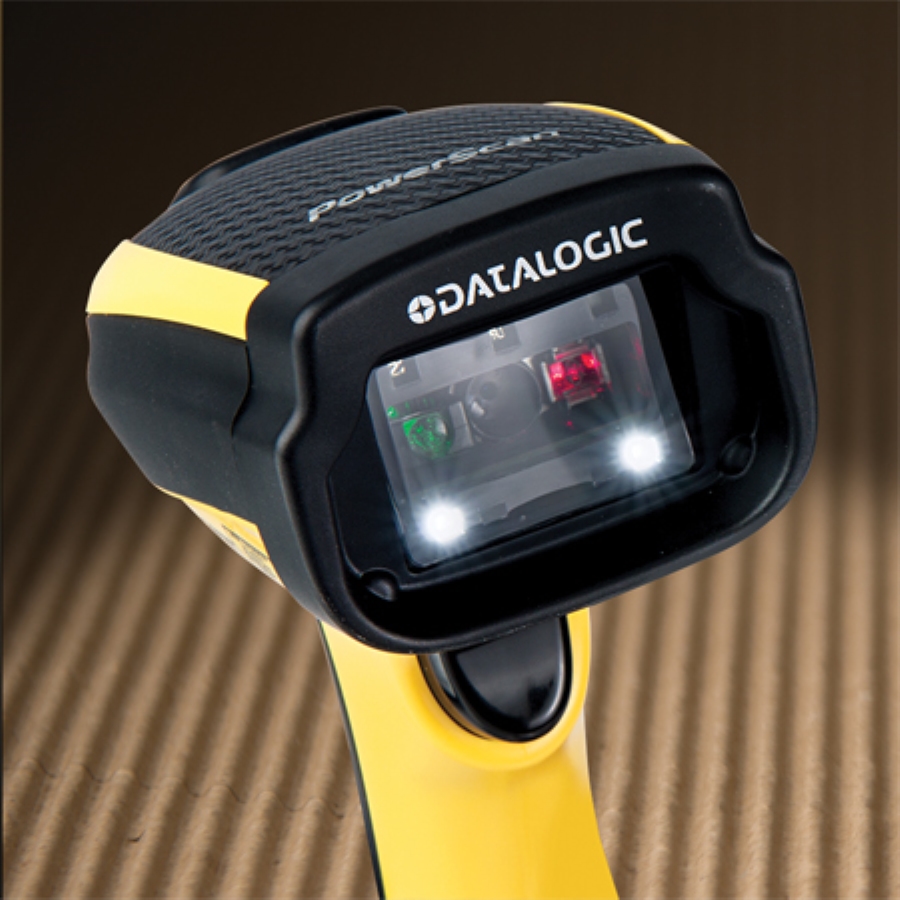

The PowerScan™ PD9530-DPM reader is a rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

The PowerScan PD9530-DPM imager includes the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type.

The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

The intuitive aiming system allows the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.

Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.

SUITABLE APPLICATIONS

Manufacturing
Warehousing
Transport & Logistics

Specifications

DECODING CAPABILITY

1D / Linear Codes:
Auto discriminates all standard 1D codes includingGS1 DataBar™ linear codes
2D Codes:
Aztec Code; China Han Xin Code; Data matrix; MaxiCode,
Micro QR Code;QR Code
Postal Codes:
Australian post; China Post, IMB; Japanese Post; KIX Post; Planet Code;
Portuguese Post; Postnetr; Royal Mail Code 9RM4SCC); Swedish Post
Stacked Codes:
EAN/JAN Composites; GS1 DataBar Composites;GS1 DataBar Expanded Stacked;
GS1 DataBarStacked; GS1 DataBar Stacked Omnidirectional;
Macro PDF; Micro PDF417; PDF417; UPC A/E Composites

READING PERFORMANCE

Direct Part Marking (DPM) Capability:
Codes are readable when marked by laser or checmical etching or ink jet printed;
Data Matrix codes are also readable when marked by dot peening
Image Capture:
Graphic Formats: BMP, JPEG TIFF
GreyScale; 256, 16, 2; JPEG, TIFF
Image Sensor:
PD9530: 864 x 544; PD9530-HP/PD9530-HPE: 1280 x 1024
Light Source:
Illumination: White LED reading Light; Aiming 630 – 670 nm
Print Contrast Ratio (Minimum):
15%
Reading Angle:
Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/-40°
Reading Indicators:
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’
Good Read Feedback; Good Read LED. Datalogic 3GL™ (Three Green Lights) Technology
and loud beeper for good-read feedback;
Datalogic ‘Green Spot’on the code; Dual Good Read LEDs
Resolution (Maximum):
PD9530: 1D Codes: 4 mil; 2D Codes: 75 mil
PD9530-HP/PD9530-HPE: 1D Codes: 2.5 mil; 2D Codes: 4 mil

ENVIRONMENTAL

Drop Resistance:
Withstands repeated drops from 2.0 m/6.6 ft onto a concrete surface
Particulate and Water Sealing:
IP65
Temperature Operating:
-20 to 50 °C / -4 to 122 °F
Storage/Transport:
-40 to 60 °C / -40 to 140 °F
